(全景图→CubeMap) NVTT+OpenCV生成DDS格式的CubeMap

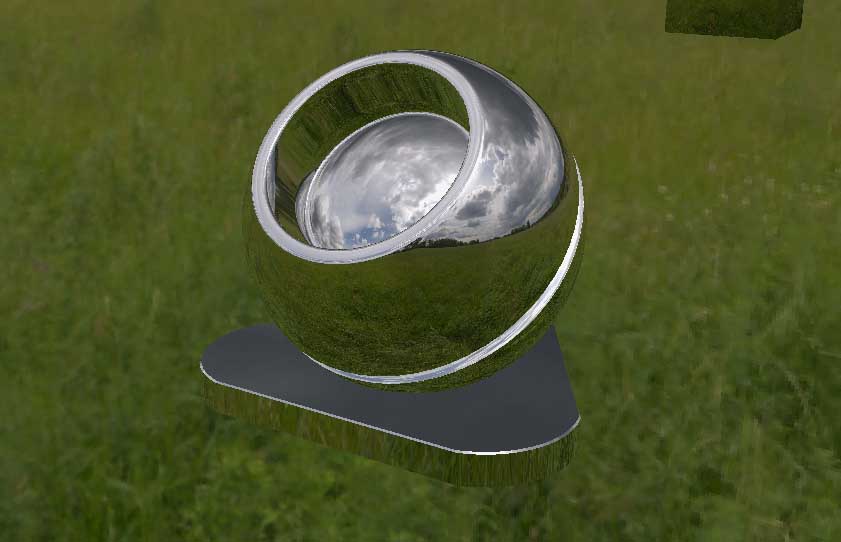

1.导入HDR全景图

2.使用OpenCV对图像进行拆解和重构（remap）
为什么要使用OpenCV ？因为在对全景图处理的时候，我们不可避免要对图像进行拉伸（球面映射）以无缝连接6个面，纯C++代码实现过于麻烦了，理论上是应该使用渲染器进行重新渲染会更方便，但是也很麻烦，使用OpenCV就可以直接在C++代码进行重绘了。OpenCV入门教程很多，随便看看就知道怎么用了。

3.再使用Nvidia Texture Tools转成dds压缩纹理

// ConsoleApplication1.cpp : 此文件包含 "main" 函数。程序执行将在此处开始并结束。
//
#include <iostream>
#include <string>
#include "nvtt/nvtt.h"
#include "opencv2/opencv.hpp"

using namespace cv;
#define M_PI  3.14159265358979323846

//定义每个面的方向，要和NVTT的格式对齐
// Define our six cube faces.
// 0 - 3 are side faces, clockwise order
// 4 and 5 are top and bottom, respectively
long double faceTransform[6][2] =
{
    {0, 0},
    {M_PI, 0},
    {0, -M_PI / 2}, //top
    {0, M_PI / 2},  //bottom
    {-M_PI / 2, 0},
	{M_PI / 2, 0},
};

//公式是Google里抄来的（嘻嘻）
// Map a part of the equirectangular panorama (in) to a cube face
// (face). The ID of the face is given by faceId. The desired
// width and height are given by width and height.
inline void createCubeMapFace(const Mat& in, Mat& face,
    int faceId = 0, const int width = -1,
    const int height = -1) {

    float inWidth = in.cols;
    float inHeight = in.rows;

    // Allocate map
    Mat mapx(height, width, CV_32F);
    Mat mapy(height, width, CV_32F);

    // Calculate adjacent (ak) and opposite (an) of the
    // triangle that is spanned from the sphere center
    //to our cube face.
    const float an = sin(M_PI / 4);
    const float ak = cos(M_PI / 4);

    const float ftu = faceTransform[faceId][0];
    const float ftv = faceTransform[faceId][1];

    // For each point in the target image,
    // calculate the corresponding source coordinates.
    for (int y = 0; y < height; y++) {
        for (int x = 0; x < width; x++) {

            // Map face pixel coordinates to [-1, 1] on plane
            float nx =((float)y / (float)height) * 2 - 1 ;
            float ny =((float)x / (float)width) * 2 - 1;

            // Map [-1, 1] plane coords to [-an, an]
            // thats the coordinates in respect to a unit sphere
            // that contains our box.
            nx *= an;
            ny *= an;

            float u, v;

            // Project from plane to sphere surface.
            if (ftv == 0) {
                // Center faces
                u = atan2(nx, ak);
                v = atan2(ny * cos(u), ak);
                u += ftu;
            }
            else if (ftv > 0) {
                // Bottom face
                float d = sqrt(nx * nx + ny * ny);
                v = M_PI / 2 - atan2(d, ak);
                u = atan2(ny, nx);
            }
            else {
                // Top face
                float d = sqrt(nx * nx + ny * ny);
                v = -M_PI / 2 + atan2(d, ak);
                u = atan2(-ny, nx);
            }

            // Map from angular coordinates to [-1, 1], respectively.
            u = u / (M_PI);
            v = v / (M_PI / 2);

            // Warp around, if our coordinates are out of bounds.
            while (v < -1) {
                v += 2;
                u += 1;
            }
            while (v > 1) {
                v -= 2;
                u += 1;
            }

            while (u < -1) {
                u += 2;
            }
            while (u > 1) {
                u -= 2;
            }

            // Map from [-1, 1] to in texture space
            u = u / 2.0f + 0.5f;
            v = v / 2.0f + 0.5f;

            u = u * (inWidth - 1);
            v = v * (inHeight - 1);

            // Save the result for this pixel in map
            mapx.at<float>(x, y) = u;
            mapy.at<float>(x, y) = v;
        }
    }

    // Recreate output image if it has wrong size or type.
    if (face.cols != width || face.rows != height ||
        face.type() != in.type()) {
        face = Mat(width, height, in.type());
    }

    // Do actual resampling using OpenCV's remap
    remap(in, face, mapx, mapy,INTER_LINEAR);
}

void CompressionImageCube(const char* imagePath, const char* outputDDS, bool bGenerateMips)
{
	using namespace nvtt;
	//创建上下文
	Context context;
	//启动Cuda加速
	context.enableCudaAcceleration(true);
	//纹理加载
	Surface image;
	bool hasAlpha = false;
	//使用OpenCV处理图像,从HDR全景图隐射到6面Cube
	{
		Mat hdrCube;
        //导入HDR图
		Mat in = imread(imagePath);
		int size = in.rows * in.cols;
		size /= 6;
		size = std::sqrt(size);
		for (int i = 0; i < 6; i++)
		{
			Mat newFace;
			createCubeMapFace(in, newFace, i, size, size);
			//合并每个图像，最终输出的是一张 size * (size * 6)的长条竖图
			hdrCube.push_back(newFace);
		}
		//暂时找不到方法直接把Mat的图像数据转到Surface里
		//猜测格式不一样，Mat应该是RGB,RGB...这样存的，
		//Surface则是RRRRR...GGGGG....这样的，不一样。
		//操作起来太麻烦了，就直接导出再重新导入一遍好了。
		//导出缓存图，重载载入:
		std::string cachePath = "C:\\cube_cache.hdr";
		cv::imwrite(cachePath.c_str(), hdrCube);
		if (!image.load(cachePath.c_str(), &hasAlpha))
		{
			return;
		}
		//删除缓存图。
		remove(cachePath.c_str());
	}

	//cube map 需要把HDR图拆出6份，必须保证不能小于6
	if (image.height() < 6)
	{
		return;
	}

	//转线性颜色(HDR图像一般就是非sRGB所以可以不做这个操作)
	image.toLinear(1.0);

	//导出设置
	OutputOptions output;
	output.setFileName(outputDDS);

	//设置图像HDR格式
	CompressionOptions options;
	options.setFormat(Format_BC6U);

	//把HDR纹理转换成Cube
	CubeSurface cubeImage;

	//因为是长条图，使用竖状排版拆分
	cubeImage.fold(image, CubeLayout_Column);

	//计算mipLevel
	int mipmaps = 1;
	if (bGenerateMips)
		mipmaps = cubeImage.countMipmaps();

	//设置DDS文件头
	context.outputHeader(cubeImage, mipmaps, options, output);
	//导出
	for (int f = 0; f < 6; f++)
	{
		for (int i = 0; i < mipmaps; i++)
		{
			context.compress(cubeImage.face(f), i, 1, options, output);
			if (cubeImage.face(f).canMakeNextMipmap())
				cubeImage.face(f).buildNextMipmap(MipmapFilter_Box);
		}
	}
}

int main()
{
    CompressionImageCube("./HDRI-Skies-Sky_0043_2k.hdr", "./HDRI-Skies-Sky_0043_2k.dds", true);
	return 0;
}
